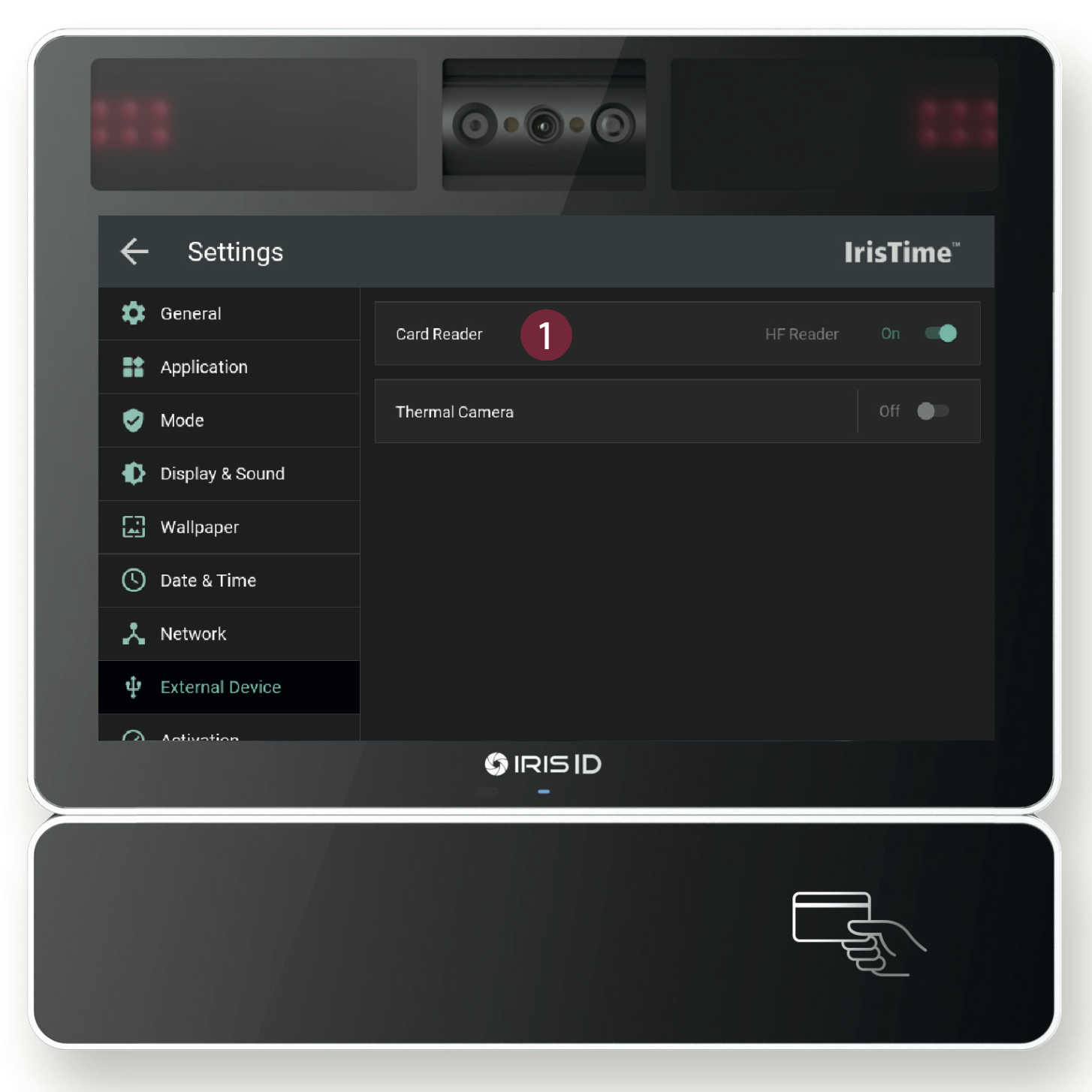

iT100 Iris Reader and Facial Recognition Clock With Prox Card Reader

IRIS/FACE Fusion
Operates in Iris only / Face only / and, or, fusion mode. Select and use according to the biometric security environment.

Simultaneous Biometric Capture
Automatically captures dual iris and face at the same distance.

Countermeasures
A proven set of anti-spoof measures that continues to set the standard for the industry is included.

Non-Contact Authentication
Automatically captures faces and iris naturally up to 24 inches or 60 cm.

7-Inch Multi-Touch Display
Easy on device setting & user enrollment available with Self-guidance with live images on 7” multi Touch LCD.

Eye Safety Certified
Tested and meets UL, ANSI, and international eye safety standards.

Automatic Tilt Adjustment
The Camera automatically finds user and moves to a location where the user’s eyes and face can be photographed.

Advanced Security
Information is encrypted, Secure Boot platform and Advanced Network security.

Large Capture Volume
Quickly and easily authenticates just by looking at the screen with wide recognition range of Iris 30~60cm(12~24”) & Face 30~80cm(12~32”).

Open Android Platform
Open Android Platform provides for third party application development.

Dimensions (WxHxD)

7.08” x 5.39” x 1.18” (180mm x 137mm x 30mm)

Weight

1.2lbs (543g)

Type

Walk-up

Power Input / Consumption

12 – 24 VDC (auto – +/- 500 mv ripple voltage industry standard) / Max. 30watt

OS

Android OS 7.1

User Interface

Self-guidance with displayed images in LCD

Operation

Iris and or Face, Face + Iris Fusion

User Capacity

Up to 10,000 1:N, 100,000 1:1 users

Transactions

Number of transaction logs on device DB: 1M (Iris) / 100,000 (Face)

Encryption

AES256

Matching Speed

Less than 1 sec

Languages

Support multiple languages and characters simultaneously
English & Korean / Additional language pack downloadable

Tilt

Auto Range: -25° ~ +25°

USB

1 Port

Memory

16GB

Tamper Detection

Yes

Algorithm

IrisCapture / DualEyeInfo™ / Countermeasure / Face Matching

Real Time Clock

Internal battery

Proximity detection

ToF Sensor

Connectivity

Ethernet or Wi-Fi (optional) Relay

Certifications

CE, FCC, KC, Eye Safety, UL294

Temperature

Operating: 32 ~ 113℉ (0 ~ 45℃)
Storage: -4 ~ 194℉ (-20 ~ 90℃)

Distance Sensing

Dual Sensors for high accuracy

Iris / Face Camera

5MP B/W CMOS image Sensor / 5MP Color CMOS image Sensor

Image Resolution

ISO Compliant

F/#

F/2.4

AF

Iris Camera: Auto Focus
Face Camera: Auto Focus

Output Image / Template

Iris Template : 512 byte per eye, Face Template 2KB
Face Image (Preview): 480 x 640
Face Image (Streaming): 720×1280
Face Image (Capture Mode): 480×640, 960×1280, 1920×2560

Iris Capture IR LED

ANSI ISO Eye Safety certified

Operating Range

Iris Camera: 11.8 ~ 23.6“ (300mm ~ 600mm)
Face Camera: 11.8 ~ 31.5”max (300mm ~ 800mm)

Serial

RS232 for external smart card reader

Relay

1 Dry contact for Door\Gate activation

GPIO

Configurable 2 GPIO’s- Programmed by application developer

USB

USB 2.0 Host for DB up/download

Connectivity

Wired Ethernet or Wireless LAN (Optional)

Wiegand

Wiegand In/Out

Speaker

27x20mm, 89dB at 1 meter
