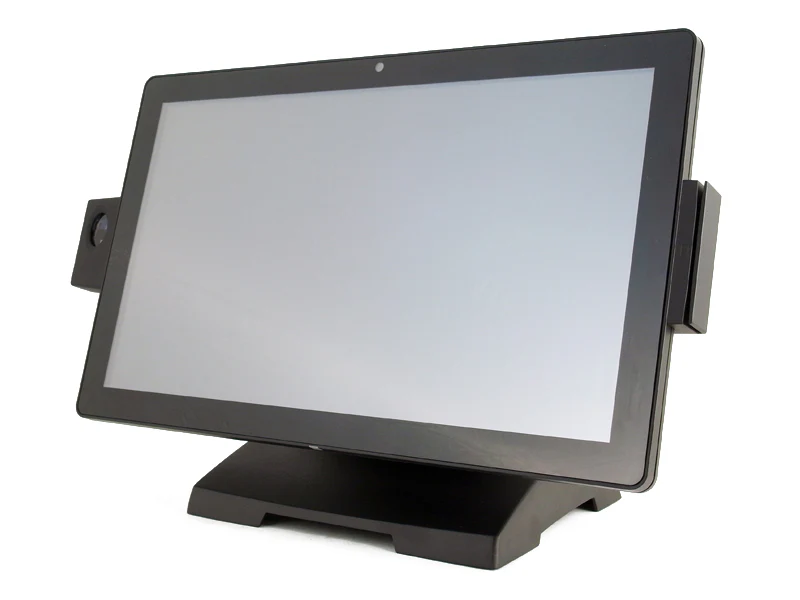

The Breeze 185 All-In-One
The Breeze 185 All-In-One POS features an 18.5” LED LCD with projected capacitive touch and Skylake CPUs up to Intel i5-6300u 3.0Ghz with a fanless cooling solution.
Specifications
MOTHERBOARD
CPU & CPU Score:
Core ™i5-6300u up to 3.0Ghz
Core ™i3-6100u 2.3Ghz
Intel ™ Celeron ™ 3955U 2.0Ghz
Chipset: Intel ™ Skylake-U System
Memory: Dual Channel, So-DIMM x2 up to 16GB DDR3L Graphics: Intel ™ HD
Graphics 520 (i3-6100u &i5-6300u) Intel ™ HD Graphics 510 (Celeron 3955u)
LCD DISPLAY
LCD: 18.5”
Maximum Resolution: 1920×1080
Brightness: 300 nits Backlight
Technology: LED
Aspect Ratio: 16:9
Touch: True Flat Projected Capacitive Touch
STORAGE
Solid State Drive: 128 GB SSD
Optional 256 GB SSD
EXPANSION
Mini-PCI Express Slot: 1
EXTERNAL I/O PORT
USB: 6 (2 x USB 2.0, 4 x USB 3.0)
Serial Ports: 4 x RJ45 (COM 2, 3, 4 power option +5/+12V)
Network: 2 x Gigabit LAN ports
Audio: 3.5mm jack line-out and 3.5 jack line-in (MIC-option) Powered
USB: Optional 1 x +12V and 1 x +24V
Cash Drawer Port: 1 x (+12V/+24V)
2nd VGA: 1 x D-sub15 (power option available)
3rd VGA: 1 x Display port
POWER
Power Adapter: Integrated 90W +19V 4.74A DIN Connector
OPTIONAL PERIPHERALS
MSR: ID Tech 3-Track MSR (USB or PS2) Encrypted Magtek USB MSR
Fingerprint Reader: URU 4500 Digital Persona
Customer Display: 2×20 VFD; 8″, 15”: 2nd Display, optional touch
Barcode Reader: Integrated 2D Barcode Reader
Wireless LAN: Mini PCI-E WLAN card, Intel, 1 x 1 IEEE 802.11 a/b/g/n/ac
Speaker: 2 x 2W
Pin Pad Mounts
CERTIFICATE
EMC & Safety: FCC Class A, CE, LVD
ENVIRONMENT
Operating & Storage Temperature: 0ºC ~ 35ºC (32ºF ~ +95ºF), -20ºC ~ 60ºC (-40ºF ~ 140ºF)
Operating & Storage Humidity: 20% ~ 85% RH non-condensing
Weight: 17lbs
Dimensions (with base & MSR): 18.1/8” x 13” x 9”
Dimensions (with bracket and pin pad): 21.25” x 13” x 9”
OS SUPPORT
POS Ready 7, Windows 8.1 Industry Retail Pro, Windows 10 IOT, Windows 10 Pro, Linux (*All OS options are 64-bit only)
